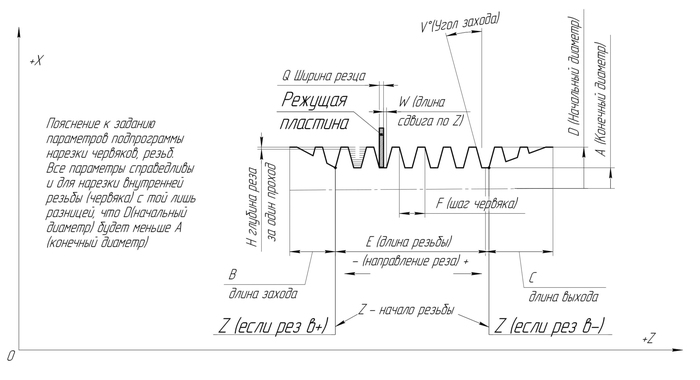

Первое фото- схема, второе- содержимое  программы и подпрограмма.

Задав нужные параметры можно нарезать червяка без КАМ системы.

АПД:

код для копирования:

.....

(REZ CHERVYAKA)

T0101

M13P1S1000

G0G99X12.Z10.Y-1.8M8

G65P3000A10.48B3.534C3.534D11.48E15.K1F3.534Q1.5H0.04T1V10.W0Z10.

(A-VNUTR.DIAMETR)

(Q-SHIRINA_REG.KROMKI)

(B-dlina_zahoda)

(C-dlina_vihoda)

(D-narugniy_diametr)

(E-dlina_rezbi)

(K-KOL.ZAHODOV)

(F-Shag mm/ob)

(H-rez_za_prohod)

(T-kol-vo_sdviov_po_z)

(V-ugol_zahoda_grad)

(W-dlina_sdviga_po_z)

(Z-nachalo_rezbi)

.....

%

O3000(PODPROGRAMMA VINT)

G99

IF[#9LE0]GOTO70

IF[#11GTABS[#7]]GOTO80

IF[#20LT0]GOTO90

IF[[#22LT0]OR[#22GE90]]GOTO100

IF[#1EQ7]GOTO110

IF[#8EQ0]GOTO120

IF[#6LE0]GOTO130

#2=ABS[#2]

#3=ABS[#3]

#4=#1

#5=#7

#9=#9*#6

#11=ABS[#11]

#17=ABS[#17]

#18=[2*#7-#1]

#23=ABS[#23]

#21=[SIN[#22]*#11]

#29=[COS[#22]*[#11*2]]

#32=#7

#33=1

#6=360000/#6

IF[#6EQ1]THEN#6=0

IF[#1LT#7]GOTO10

#30=[[#1-#7]/#29]

#29=[-1*#29]

#4=#7

#5=#1

#33=0

GOTO20

N10#30=[[#7-#1]/#29]

N20#28=[#21*#30]

IF[#8GT0]GOTO30

#23=-1*#23

#28=-1*#28

#21=-1*#21

#17=-1*#17

#2=-1*#2

#3=-1*#3

N30#27=#18

G0X#18Z[#26-#2]

WH[#5GT#4]DO1

#7=[#7-#29]

#18=[#18-#29]

#19=0

IF[[[#4GT[#32-#29]]AND[#33EQ1]]OR[[#1LT[#32-#29]]AND[#33EQ0]]]THEN#7=#1

WH[#19LT360000]DO2

IF[#6EQ0]THEN#19=360000

IF[[[#20EQ0]OR[#23EQ0]]AND[#22EQ0]]GOTO50

#25=#26

#31=0

WH[[ABS[#28-#17/2]]GT[ABS[#31]]]DO3

#13=-1

#26=[#26+[#20*#23]]

N35IF[#13GE#20]GOTO40

G0X#18Z[#26-#2+#28-#31]

G32X#7Z[#26+#28-#31]Q#19F#9

G32Z[#8+#26+#28-#31]Q#19F#9

G32X#18Z[#3+#8+#26+#28-#31]Q#19F#9

G0X#27

G0Z[#26-#2+#28]

#13=[#13+1]

#26=[#26-#23]

GOTO35

N40#26=#25

N50G0X#18Z[#26-#2-#28+#31]

G32X#7Z[#26-#28+#31]Q#19F#9

G32Z[#8+#26-#28+#31]Q#19F#9

#32=#5001

G32X#18Z[#3+#8+#26-#28+#31]Q#19F#9

G0X#27

IF[[[#20EQ0]OR[#23EQ0]]AND[#22EQ0]]GOTO60

#31=#31+#17

END3

N60#19=[#19+#6]

G0Z[#26-#2-#28]

END2

#28=[#28-#21]

IF[#33EQ1]GOTO63

#4=#7

GOTO65

N63#5=#7

N65END1

M99

N70#3000=1(NEPRAVILNO_F)

N80#3000=1(H_BOLSHE_D)

N90#3000=1(T_MENSHE_0)

N100#3000=1(UGOL_V_OT_0GRAD_DO_90GRAD)

N110#3000=1(A_RAVNO_D)

N120#3000=1(E_RAVNO_0)

N130#3000=1(NE_ZADAN_K)

%
